- Progressive flow softener system provide uninterrupted flow of soft water 24/7, round-the-clock, easily accommodating erratic flow demands.
- Inlet/outlet 2" pipes, 1.5" FNPT drain line. [ Inlet and outlet diameter of the water softener must match the diameter of the water supply piping at the location where the softener will be installed. UPC 610.2 ]
- Treated water regeneration eliminates hardwater carryover. This feature is a huge plus over traditional single tank softeners and therefor improves the efficiency of the regeneration process, allowing for less salt to be used.
- Recommended for laundries, car washes, restaurants, hotels/motels, apartment complexes.
- Progressive flow systems are the ideal solution for large-scale commercial applications with fluctuating demand. By integrating our System Controller, you can link up to eight units to achieve massive flow rates. To convert your setup into a progressive flow system, contact us to order multiple softeners along with our dedicated conversion kit. Each kit includes No Hard Water Bypass (NHWBP) valves and all necessary communication cables.
- Please note these systems are made to order and all sales are final. No returns, exchanges or refunds. Media shipped unloaded with funnel.
Pre-Assembled
and DIY
Friendly
The system comes pre-assembled with color-coded tubing and quick-connect fittings.
Of dissolved
contaminants
removes
Including lead, nitrates, fluoride, mercury, and salts (even in high TDS water).
WECO Crystal
Clear
Water
Removes chlorine and impurities for fresh drinking water.
Standard Size
Cartridges
It uses standard 10-inch filter cartridges, making replacements easy to find and affordable.
Woco Complete
Kit
Includes a lead-free designer faucet, a storage tank, and all necessary installation hardware.
Eco-friendly &
Efficient
System
Designed to provide high-quality water while maintaining a good cost-to-benefit ratio.

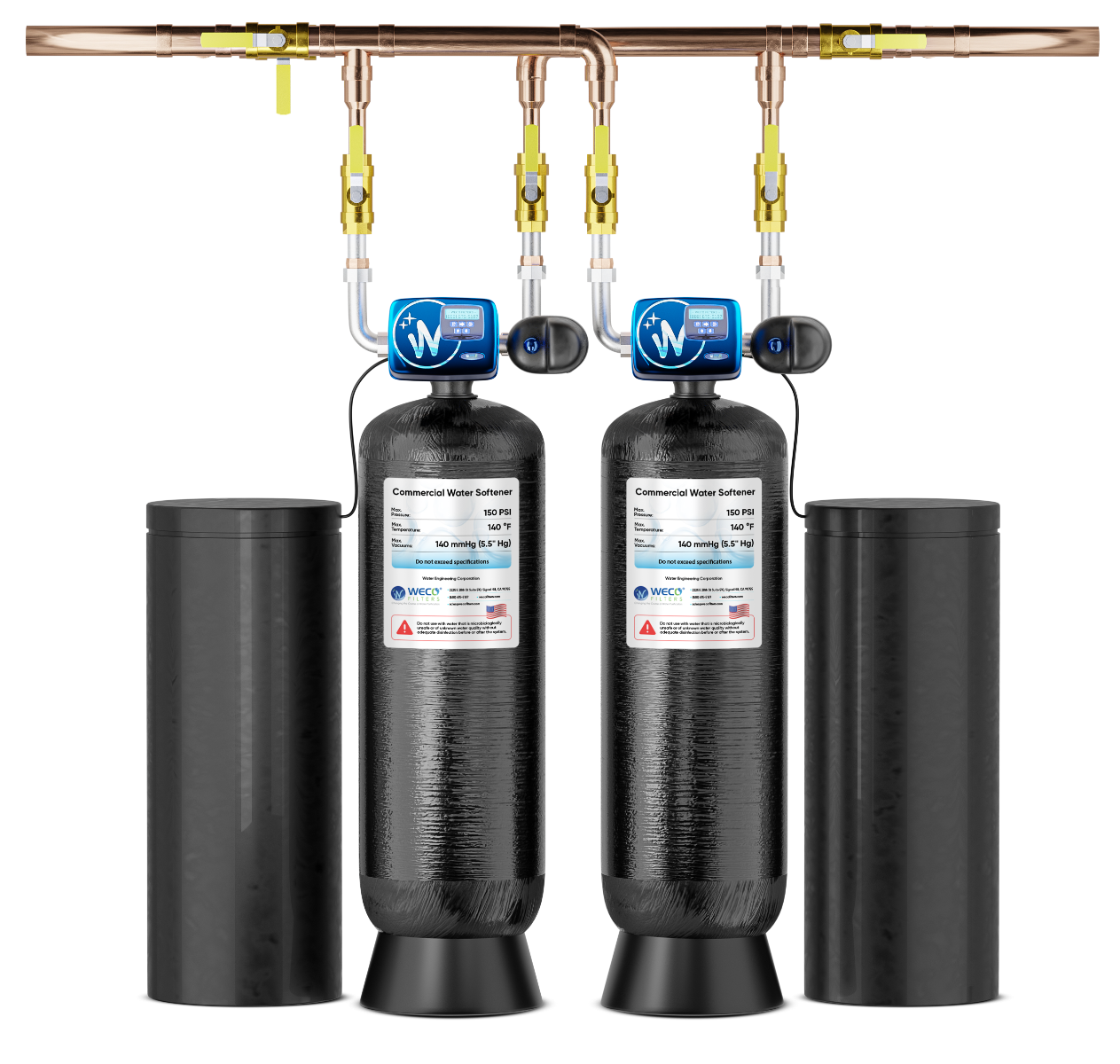

WECO IPK Series
Stainless Steel Meter
- Strength and durability. Non corrosive.
- As defined in the U.S. EPA Safe Drinking Water Act; the product also meets California Proposition 65 Standards.

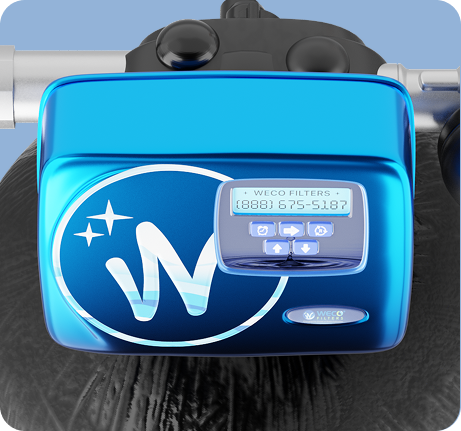

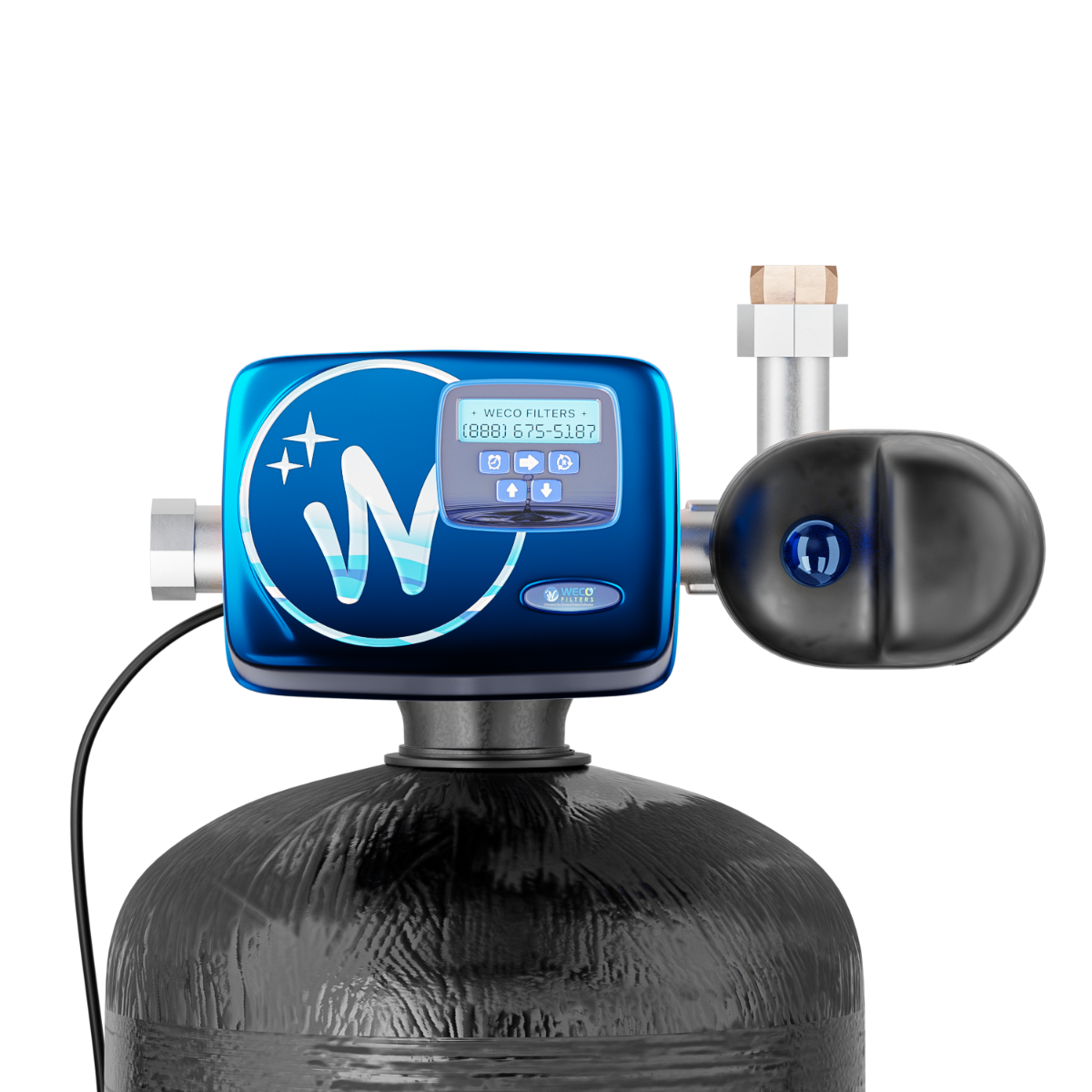

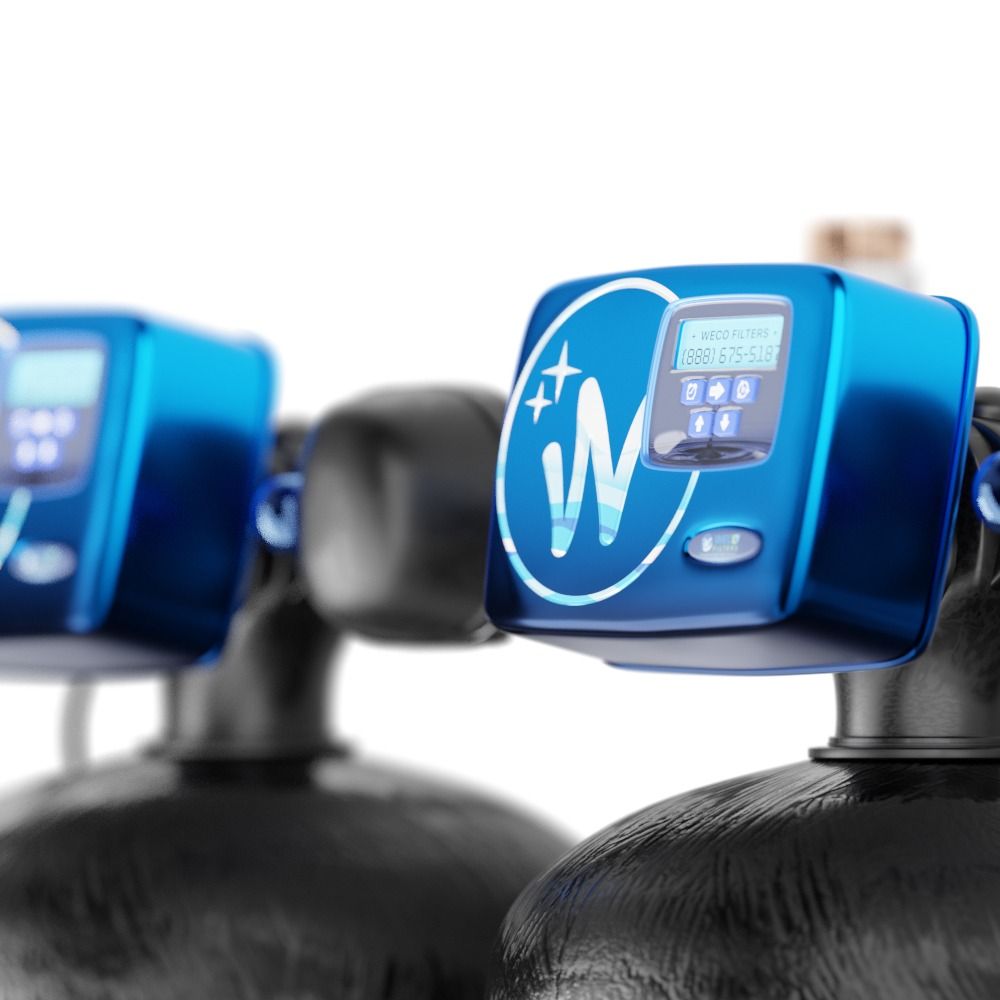

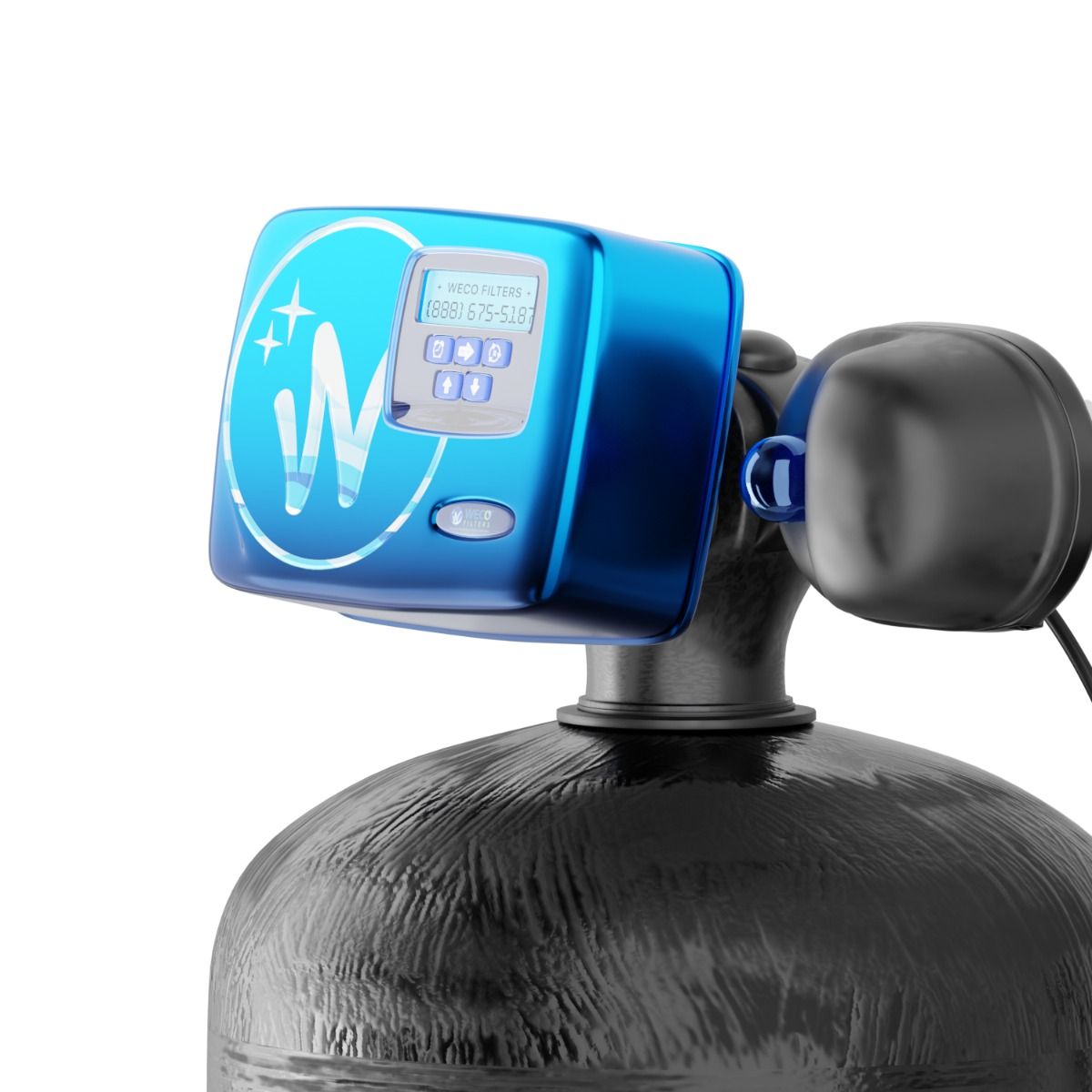

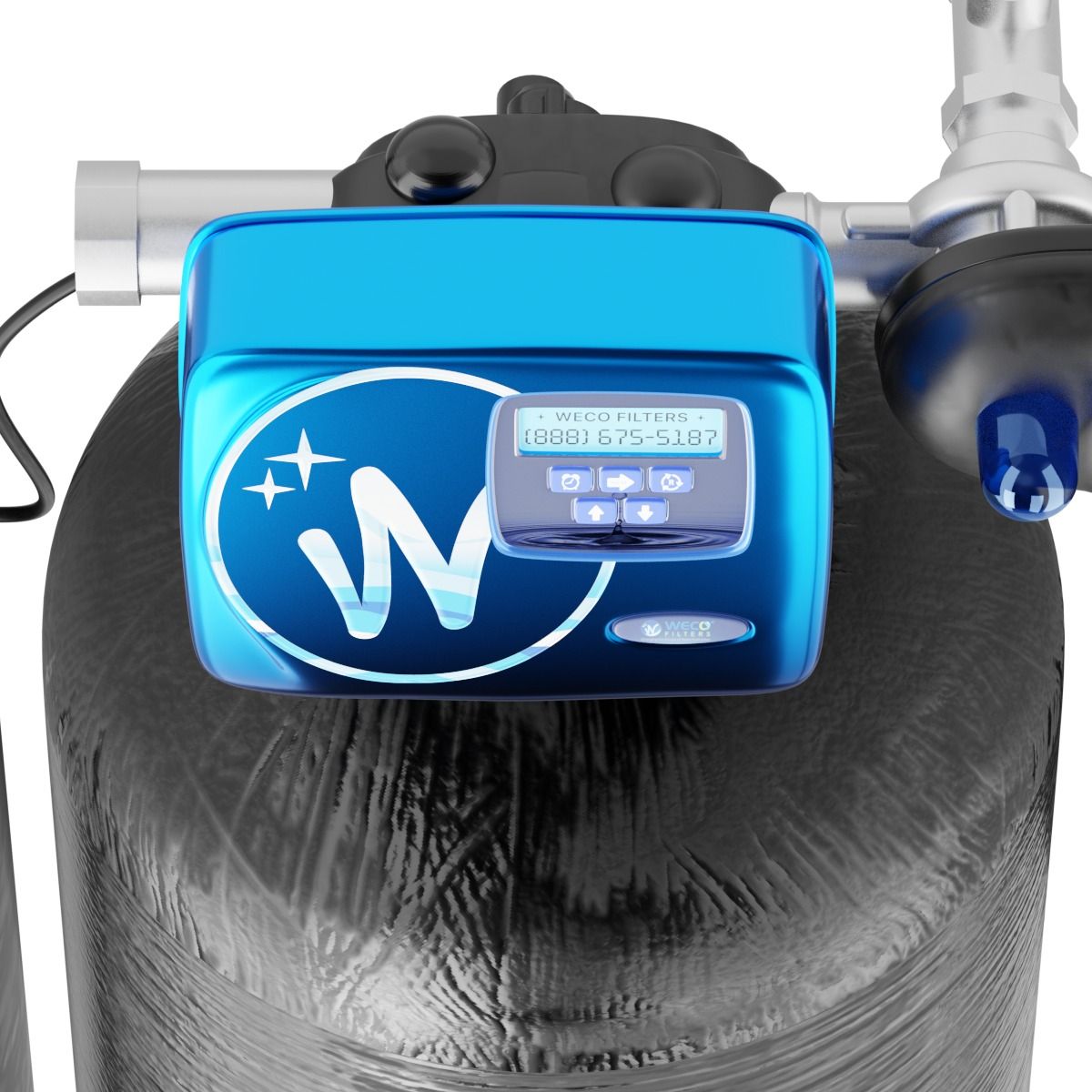

Intelligent Controller
- State-of-the-art control head designed for commercial/industrial water applications requiring high flow rates.
- Designed for multiple tank systems. No hard water bypass.
- Fully automated performance.

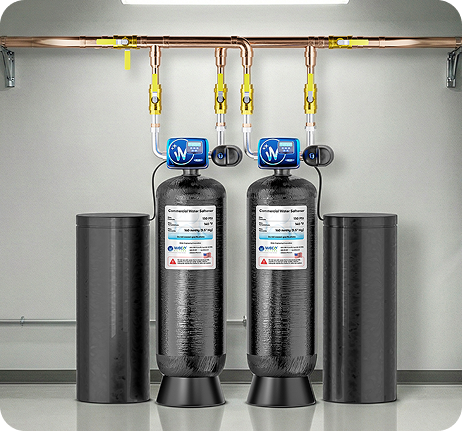

Responsive Flow
- One softener unit always in service. If demand causes flow rates to increase, softener in standby goes into service. Multiple softeners capture peak flow rates.
Simple Connections
- 2" NPT Ports
- Easier to plumb in than twin softeners, costs slightly more but more versatile due to dual meters.
- Installation & operation manual included.
Advantages
- Demand flow captures low and high flow rates effectively.
- Typical media replacement every 5 - 7 years* (depends on water chemistry).
- Ability to use smaller tanks and still meet the flow requirements compared with regular tank softeners.
- Low operational costs.

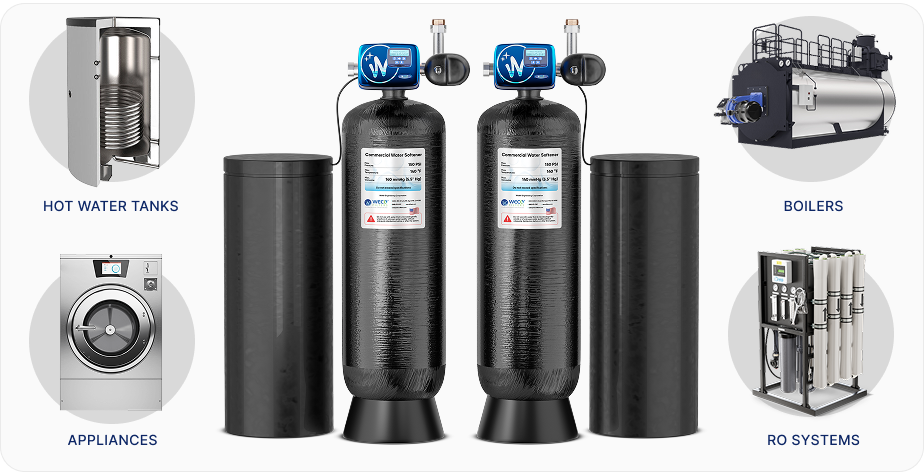

Ideal Applications
.png)
.png)
Specifications
| Models | Tank Dimensions (in) (2 Tanks) | Appx. Service / Peak Flow (GPM) | Brine Tank Dimensions (in) |
Resin Media Volume per Tank (cu.ft) |
Height (in) |
|---|---|---|---|---|---|
| IPK-L20-A-1465 | 14 × 65 (2 Tanks) | 3–21 / 50 GPM | 24 × 40 | 3 cu.ft | 78 in. |
| IPK-L20-A-1653 | 16 × 53 (2 Tanks) | 4–28 / 60 GPM | 24 × 40 | 4 cu.ft | 66 in. |
| IPK-L20-A-1665 | 16 × 65 (2 Tanks) | 4–28 / 60 GPM | 24 × 40 | 4 cu.ft | 78 in. |
| IPK-L20-A-1865 | 18 × 65 (2 Tanks) | 5–35 / 69 GPM | 24 × 40 | 5 cu.ft | 79 in. |
| IPK-L20-A-2162 | 21 × 62 (2 Tanks) | 7–48 / 91 GPM | 24 × 50 | 6 cu.ft | 79 in. |
| IPK-L20-A-2460 | 24 × 60 (2 Tanks) | 9–62 / 98 GPM | 24 × 60 | 8 cu.ft | 77 in. |
| IPK-L20-A-2472 | 24 × 72 (2 Tanks) | 9–62 / 96 GPM | 24 × 60 | 9 cu.ft | 87 in. |
| IPK-L20-A-3072 | 30 × 72 (2 Tanks) | 15–98 / 109 GPM | 30 × 60 | 14 cu.ft | 98 in. |
| IPK-L20-A-3672 | 36 × 72 (2 Tanks) | 21–107 / 119 GPM | 39 × 48 | 18 cu.ft | 98 in. |
| IPK-L20-A-4272 | 42 × 72 (2 Tanks) | 28–114 / 127 GPM | 39 × 60 | 25 cu.ft | 106 in. |
| IPK-L20-A-4872 | 48 × 72 (2 Tanks) | 38–114 / 127 GPM | 50 × 60 | 30 cu.ft | 108 in. |
